500mm Hydraulic Rebar Shear Line with 42kw Motor and 12m Max Cut

Nome da marca:	GUTE
MOQ:	1
preço:	$58,000

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Sichuan, China

Tensão:

380V

Dimensão:

30*5*3 m

Poder:

42 quilowatts

Peso:

15000 KG

Largura de ponta:

500mm

Modo de cisalhamento:

de corte hidráulico

Velocidade do rolo:

0-100m/min Ajustável

Comprimento máximo de cisalhamento:

12m

Comprimento mínimo de cisalhamento:

1.4m

Precisão de cisalhamento:

± 5mm

Frequência de cisalhamento:

≤12n/min

Série de silo:

Poder nominal:

42 kW

Peso total:

15t

Modo de controle de comprimento:

Servo

Destacar:

500mm hydraulic rebar shear line

42kw motor rebar shear

12m max cut rebar shear

Descrição do produto

Manufacturer wholesale Custom Cutting Edge Width 500mm Rebar Shear Line Rebar Shear Line SGS150

Product Specifications

Attribute	Value
Video Outgoing-Inspection	Provided
Machinery Test Report	Provided
Core Components	Motor
Voltage	380V
Dimension (L×W×H)	30×5×3 m
Power (kW)	42
Weight (kg)	15000
Key Selling Points	Easy to Operate
Warranty	1 Year
Cutting Edge Width	500mm
Shearing Mode	Hydraulic shearing
Roller Speed	0-100m/min adjustable
Maximum Shear Length	12m
Minimum Shear Length	1.4m
Shear Accuracy	±5mm
Shear Frequency	≤12n/min
Silo Series	3
Rated Power	42kw
Total Weight	15t

Product Description

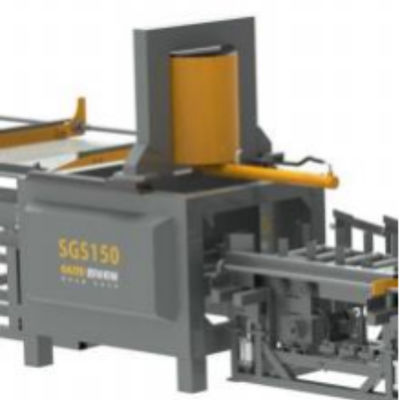

CNC Rebar Shear Line SGS150

PLC control shearing precision, high precision of finished steel bar, suitable for shearing processing of steel bar with many specifications and small batches
24 fixed length plates with steel plate structure and fixed length servo motor for fast and accurate operation
Large length blade and inclined blade design for simultaneous cutting of multiple reinforcing bars
Centralized oil supply system ensures long life operation
3-level product storage mechanism for efficient product collection
Thickened and widened gears with fully encapsulated shield for stable cutting and enhanced safety
High strength spiral elevator positioning screw for high accuracy and minimal deformation
Adjustable cutting length with continuous operation capability and high fixed-length cutting accuracy
Key-guided chains with rolling friction design for minimal wear, long service life and high transmission efficiency

Straightening Structure

Straightening wheel made from forged alloy tool steel for superior wear and impact resistance.

Preset wheel plate constructed from 30mm thick steel plate for high strength and durability under impact loads.

Multi-split Type Blade

Multi-split type blade design provides double the lifespan compared to standard one-piece blades.

Servo Motor

16KW high-power servo motor ensures smooth traction operation.

Pneumatic Element

Premium Airtac brand pneumatic components from Taiwan ensure extended service life.

Split thickening blade design with 40mm thickness for multiple use cycles.

Pay-Off System

2 pay-off units included with each machine
2500KG maximum carrying capacity per pay-off
Designed for easy disassembly and transport
Optional brake customization available

Automatic Collector (Optional)

Automated collection of finished stirrups
Adjustable collection quantity settings
Simplifies finished product packaging

Application

Production Line

Company Profile

GUTE is a leading manufacturer of construction machinery with 28 years of experience and over 250 skilled workers specializing in steel bar processing equipment.

Exported to more than 70 countries with 70% export share of steel bar bender/cutter machines
Over 200 agents in Chinese market and 10 owned brand shops across China
OEM provider for many renowned European brands
Global presence in Russia, Italy, Brazil, Algeria, India, Argentina, Saudi Arabia, Middle East and more
Specialists in reinforcement steel bar bending, shearing, welding, and straightening machines
Expertise in R&D and quality control for customized solutions
Manufacturer of highly precise, durable semi-automatic and fully automatic steel bar machines

Transportation

Frequently Asked Questions

Q: What's the producing time and delivery time?

A: Orders under 5 units are typically in stock with delivery to Shanghai port in about 5 days. Larger orders (5+ units) require 10-15 working days for production.

Q: What's the MOQ?

A: Minimum order quantity is 5 units. Sample orders of 1 unit are possible with additional port and delivery charges.

Q: What's the departure port?

A: Standard departure from Shanghai port, with options for Guangzhou, Qingdao, Tianjin or other Chinese ports available.

Q: What's the packing?

A: Secure packaging with iron pallets and poly wooden cases (no fumigation required).

Q: What's the payment term?

A: Multiple payment options including T/T, L/C, DP, West Union, and PayPal.

Our Service Commitment

Prompt response to all inquiries within 24 hours
Complete protection of your sales area, design concepts, and private information
Guaranteed best quality products at competitive prices
